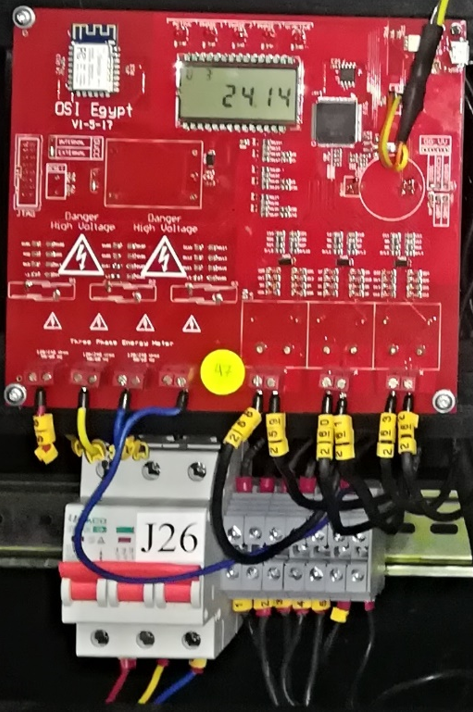

3 Phase Energy Meter
| Basic Features | |
|---|---|
| Meter Type | System Architect |
| Housing Material | Polycarbonate |
| Connection Type | Three Phase |
| Nominal Voltage | 380 V |
| Base Current | 1A |
| Max. current | 80 A |
| Starting Current | 0.4% Ibase |
| Nominal Frequency | 50/60 Hz (± 2% ) |
| Accuracy: | Active: Class 0.5 |
| Measuring | Volt, Amp, Active Reactive Power, Apparent Power, Energy |
| Measuring Range | 0～999999.99 kWh |
| Power Consumption | Less than 2 W |
| Electrical Output | Pulse |
| Control | Magnetic Latching Relay |
| Life Cycle: | >10 Years |
| Environmental Features | |
| Insulating Voltage Class/ Impulse | 4kV @ 50 Hz for 1 min |
| Normal Working Temp. | -10℃～+70℃ |
| Max. Working temp. | -25℃~+80℃ |
| Storage Temperature | -25℃～+80℃ |
| Relative Humidity | Up to 95% for 30 days per year |
| Protection Class | IP54 |
| Communication | GPRS/RFID/PLC/CDMA/WIFI |
| LCD | 6 digit |
| Power Backup | Internal Battery |
| Tariffs | Programmable Tariffs and 8 Tariffs ( Weekly Dependent) , 8 seasons |
| Load Profiles | 8 channels for (Voltage, Current and power) |
| Logging | 1000 Time Stamped Event recording capability |
| Anti-Tampering | Fraud/ Tampering Detection and logging |
| Operator Interface RFID | Hand Held Unit (HHU) communication |
Measurements
NOUR 1 smart energy meter is able to measure
- voltage & current
- RMS of volt & Current
- active, reactive power
- apparent power
- Apparent energies
- Line frequency
Anti-Tamper-Proof
NOUR 1 meter is designed and constructed for the following features.
- Phase and neutral interchange.
- Partially or fully earth condition.
- Missing neutral.
- Neutral disturbance.
- Missing potential.
- Bypass meter.
- Double feeding the meter.
- Magnetic interference.
- External tampers.
- High voltage tamper.
- Frequency tamper.
- Jammer
- Changing the time.
Displaying Data
- Current month consumption in KWH.
- Maximum demand in Ampere and KW.
- Previous month consumption in KWH.
- Consumption of last previous 12 months.
- Total consumption from installation time.
- Meter serial number.
- Date (Day – Month – Year) and current time (24 hours).
- Type of use according to electricity company’s requirement.
- Last fraud and tamper case will be shown (in date and time).
- 2 pages can be programmed according to electricity companies
Display screen will show the following messages.
- (Please recharge) in case of low credit.
- (Battery low level) in case of the battery is low.
- (Load excessive) in case of the load excessive than the programmed current to the meter (disconnection limit) for 5 minutes. If the load excessive repeated 3 times, the magnetic rely will trip.
- (High Volt) in case of overvoltage.
- (Low volt) in case of undervoltage.
